150 Multi-Deck: Aluminium Decking Non-Combustible Balcony & Terrace Flooring

Hyperion flat roof decking system with 150 multi-deck

Quick & easy height adjustment with protective membranes for a flat roof installation.

Fire Resistance A2 to EN13501-1
Fire Resistance A2 to EN13501-1
Variable Height 69-604 mm
Variable Height 69-604 mm
System Weight ~11-19 kg/m²
System Weight ~11-19 kg/m²
Order a Sample Data Sheets Contact Us
files/Website_Infographic_A-Class_2.0_System_1.png files/Website_A-Class_2.0_2D_Diagram_System_1.PNG

HYPERION FIXED HEIGHT SYSTEM with 150 multi-deck

Simple installation, suitable for all balconies and terraces with steel beam supports.

Fire Resistance A2 to EN13501-1
Fire Resistance A2 to EN13501-1
Fixed Height 21 m
Fixed Height 21 m
System weight ~8 kg/m²
System weight ~8 kg/m²
Order a Sample Data Sheets Contact Us
files/Website_Infographic_A-Class_2.0_System_2.PNG files/Website_A-Class_2.0_2D_Diagram_System_2.PNG

ADJUSTABLE HEIGHT HYPERION DECKING SYSTEM with 150 multi-deck

Control the height and slope quickly and efficiently with adjustable steel cradles.

Fire Resistance A2 to EN13501-1
Fire Resistance A2 to EN13501-1
Variable Height 66 - 601 mm
Variable Height 66 - 601 mm
System Weight ~11-19 kg/m²
System Weight ~11-19 kg/m²
Order a Sample Data Sheets Contact Us
files/Website_Infographic_A-Class_2.0_System_3.PNG files/Website_A-Class_2.0_2D_Diagram_System_3.PNG

What qualifies as non-combustible?

Learn More
What qualifies as non-combustible?

150 Multi-Deck: Non-Combustible Aluminium Decking

Beautifully engineered and non-combustible aluminium deck boards by Hyperion are purposely specified for balcony and terrace areas, complying with the latest fire safety laws. Our simple clipless system gives you the choice between a deck with a continuous appearance, or the classic deck look with gaps every 150 mm.

Hyperion stock colours

Anthracite

7016

Grey Brown

8019

150 Multi-Deck: TECHNICAL SPECIFICATIONS

Length 3.6m boards
Profile 145 x 21 mm
Reaction to Fire A2 s1 d0
Slip Resistance BS EN 14231 - DRY 64 WET 46 (ptv-low slip potential)
Warranty Up to 30 years
Material T6 6063 Aluminium
Finish Powder coated
kN/m2 Deflection Allowed
1/360 1/480
2.5 750 700
4 650 600
5 600 550
Full Data Sheets

Components

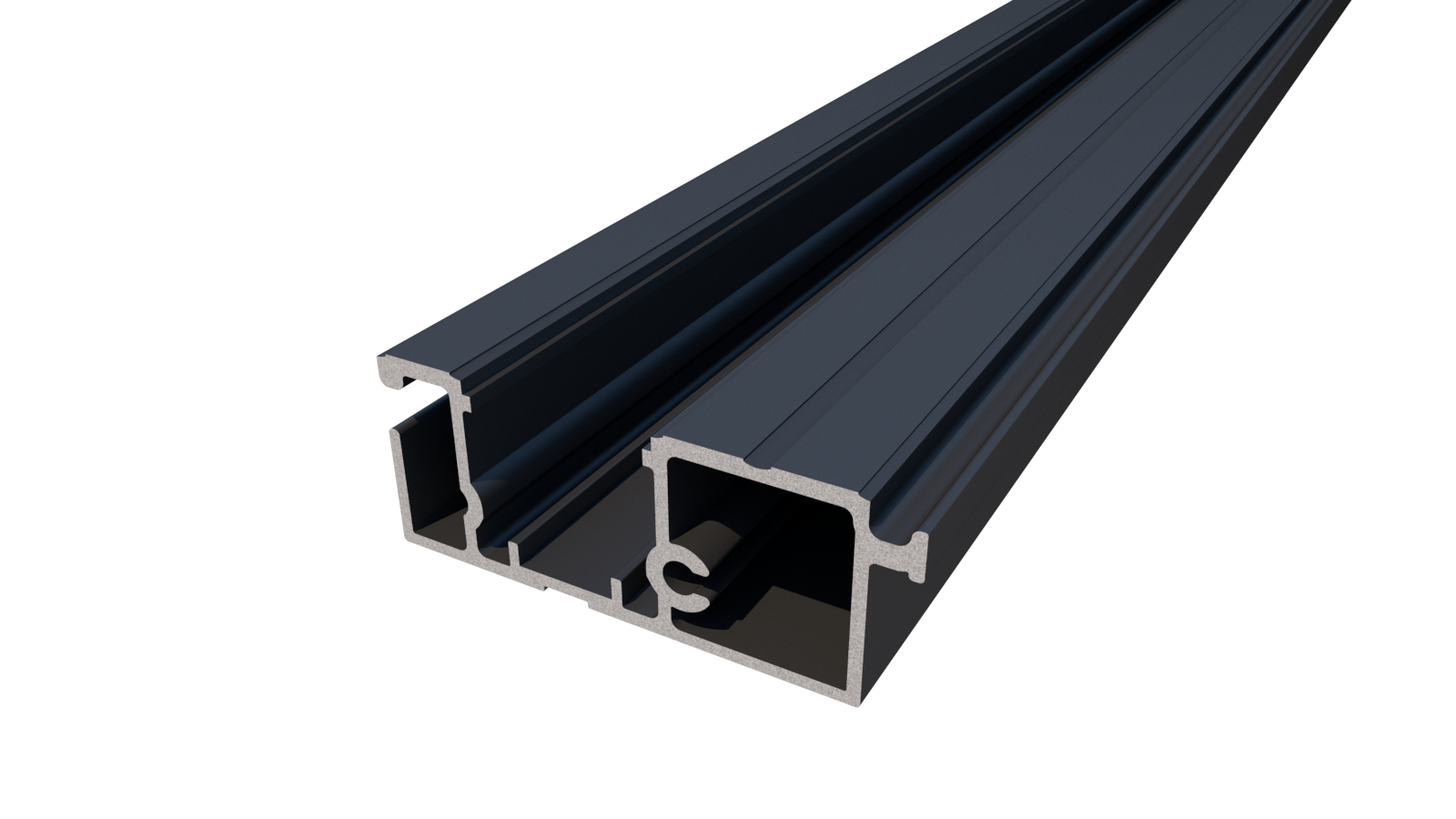

Starting Trim

Fixed using screws, which are hidden with an insert

Decking Board

Beautifully engineered fire resistant decking, with the ability to have a continuous appearance with no gaps

Flush Insert

Snaps into place and gives the appearance of a continuous deck

Gap Insert

Snaps into place and gives the appearance of 150 mm wide decking

Substructure

Adjustable Steel Pedestal

Height ranges varying from 11-500 mm

Protective Rubber Mat

Protects roofing membrane and provides a sturdy surface

Aluminium Joist

Low profile, fully recyclable, non combustible joist

Order samples here today

Browse Selection
Order samples here today
ALUMINIUM DECK BOARD DOWNLOADS
CAD Downloads
Download
Technical Specification
Download
Brochure
Download
ALUMINIUM DECKING SYSTEM DOWNLOADS
CAD Downloads
Download
Technical Specification
Download
Installation Guide
Download
Brochure
Download
