150 Aqua-Channel Aluminium Decking

Flat Roof System

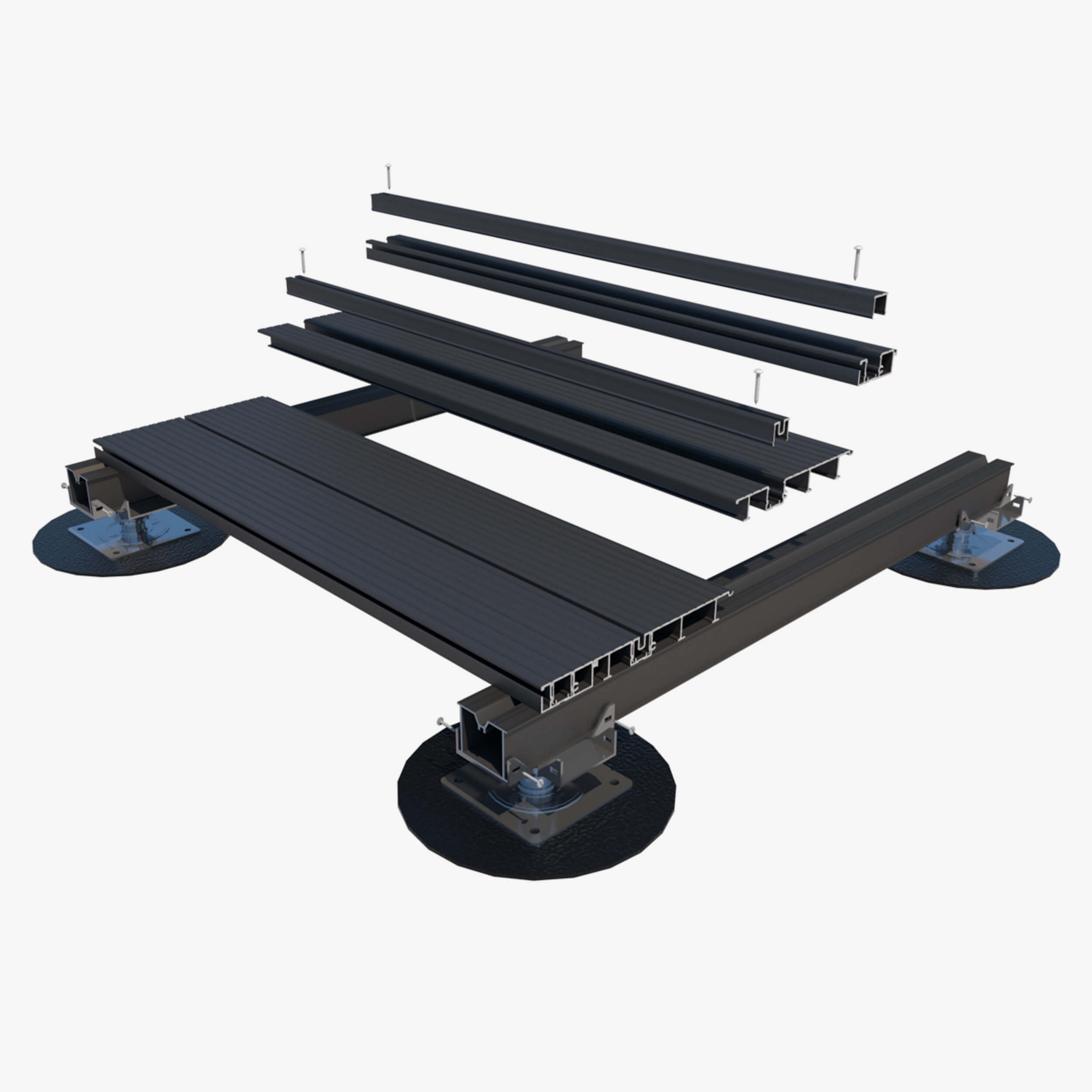

Aluminium decking system for flat roof installations with a built-in drainage system. Pedestals provide quick and easy height adjustment, with membranes for roof protection.

Built-in water drainage system

150 Aqua-Channel boards create a continuous surface, with patented interlocking attachments and drainage channels which are designed to even mitigate the capillary effect. The boards are installed at an angle, forcing liquids down the continuous deck (with flush inserts) or down grooves (with gap inserts) where it can be collected by the drainage system.

aqua-channel-flat-roof
â €
grey-brown-150-aqua-channel

Grey Brown
(8019)

anthracite-grey-150-aqua-channel

Anthracite Grey
(7016)

bespoke-ral-colours-available

Bespoke RAL Colours Available

â €

Fire Resistant to EN 13501-1

A2 certified aluminium

Variable Height

With a 49–604 mm range

Qualicoat Certified Coating

Long-lasting powder coat

Built-in Drainage System

To BS 8579 standard

Easily adjustable heights for creating flat systems

The cradles of MESA Pedestals can simply be rotated to adjust their heights, meaning installation on uneven or sloping surfaces can be done with minimal effort.

aqua-channel-flat-roof-cross-section

Technical Specification

PropertyAttribute
Length3.6 m boards (custom lengths available)
Profile150 x 21 mm
Colours8019 Grey Brown, 7016 Anthracite Grey (bespoke RAL colours available)
Reaction to fireA2 s1 d0 and A2fl-s1
WarrantyUp to 30 years
MaterialAluminium 6063-T6, Interpon PE powder
FinishAnti-slip Qualicoat 1 textured powder coat
Deflection at 2 kN point load0.80 at 1/180, 0.70 at 1/360, 0.50 at 1/480
