Porcelain Decking

Flat Roof System

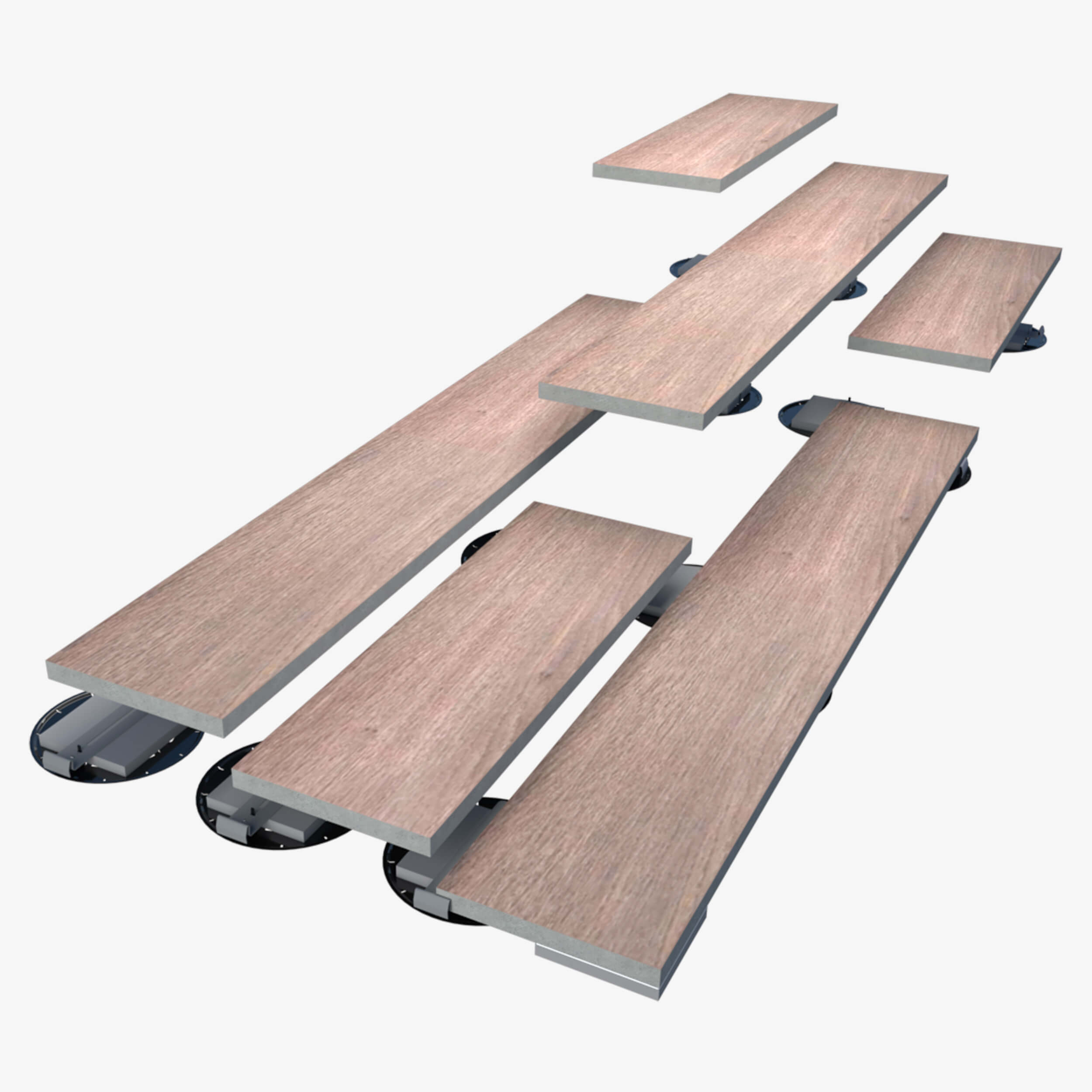

Porcelain paving system for flat roof installations. Pedestals provide quick and easy height adjustment, with membranes for roof protection.

Fast and secure installation with uniform positioning

Designed to meet the needs of a wide variety of both commercial and residential spaces this non-combustible fire rated system uses gaskets with adjustable steel pedestals and slip-proof rubber membranes to provide security, strength & adaptability where it is needed most. Paving spacer gaskets and edge bars ensure perfect spacing between slabs and at the perimeter.

porcelain-decking-flat-roof
â €
arboreo-maple-porcelain-paving-swatch

Maple

arboreo-birch-porcelain-paving-swatch

Birch

arboreo-ash-porcelain-paving-swatch

Ash

â €

Fire Resistant to EN 13501-1

A1 certified porcelain

Variable Height

25 mm minimum height

A Range of Looks

Selection of wood and stone finishes available

Suitable for Commercial Areas

Made for recessed balconies & terraces

Easily adjustable heights for creating flat systems

The cradles of MESA Pedestals can simply be rotated to adjust their heights, meaning installation on uneven or sloping surfaces can be done with minimal effort. Paving gaskets can simply be placed onto the pedestal head for use as spacers between slabs.

porcelain-decking-flat-roof-cross-section

Technical Specification

PropertyAttribute
Size1200 x 200 or 1200 x 400 mm
Profile20 mm
Slip RatingR11
Reaction to fireA1
Warranty10 year structural warranty
MaterialPorcelain
FinishLithographic wood
